Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer for DSLRs
By Saramonic
SKU: SR-AX107
Inclusive of all taxes
- View Shipping Details
Dimensions and Weight
Dimensions (cm)
16 x 6.8 x 10
Weight (kg)
0.60
Unit
NOS
Manufacturer
DSQN INVESTMENT Co. Ltd.
Country of Origin
China
Explore
Description

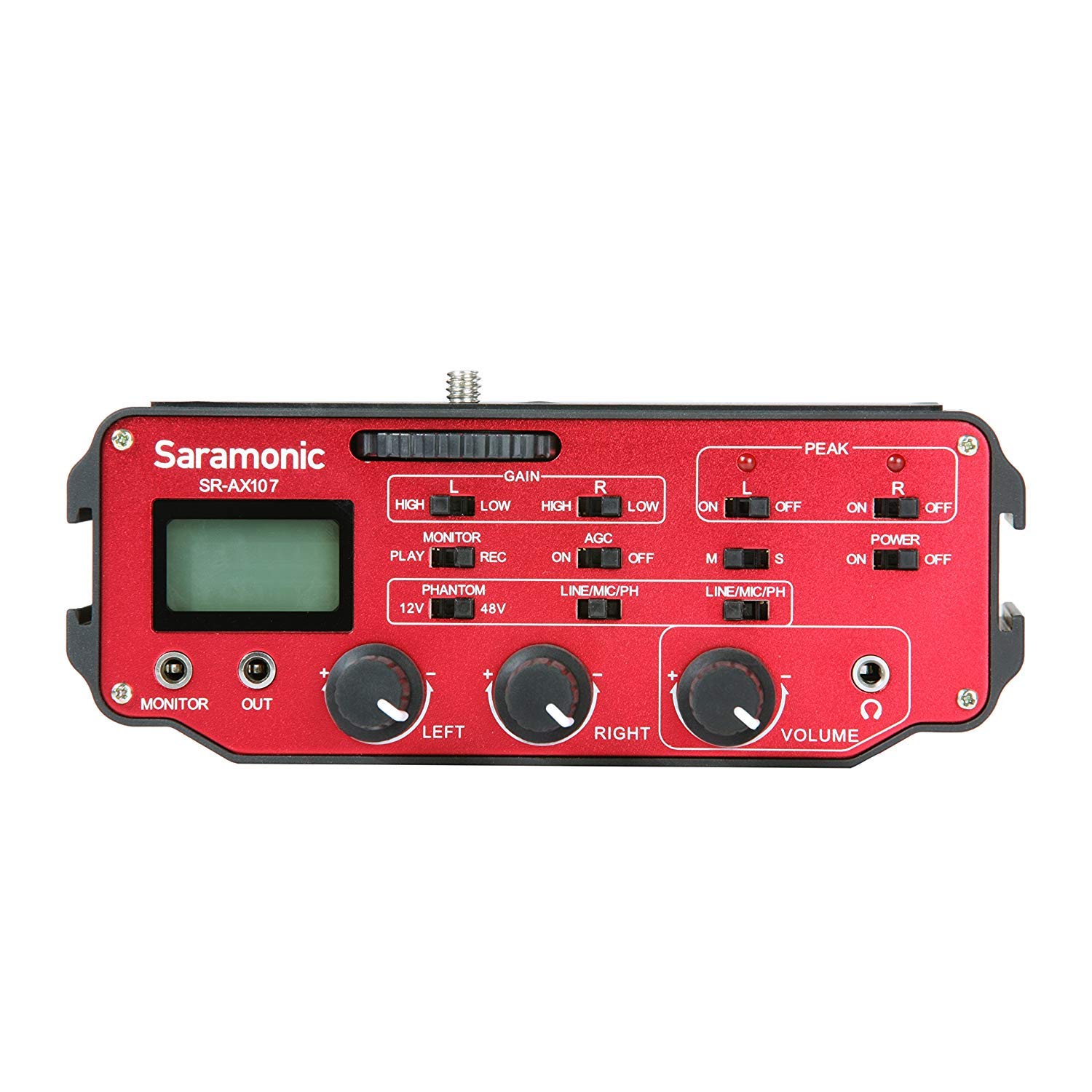

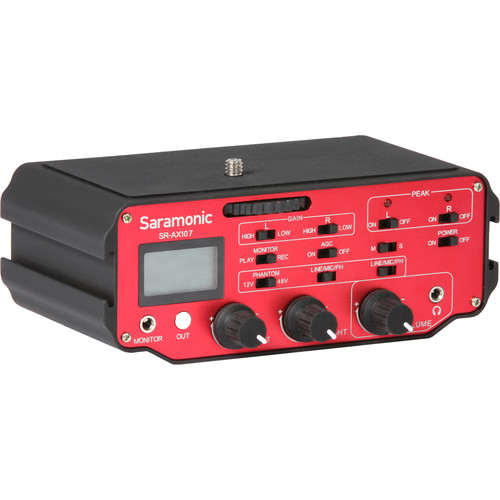

The SARAMONIC SR-AX107 is a 2-channel XLR audio adapter with preamplifiers and phantom power, ideal for any DSLR cameras with a built-in microphone jack.
The SR-AX107 allows you to connect professional condenser microphones, wireless microphones, digital recorders, external audio mixers, sound boards and more to your DSLR camera or camcorder via two balanced XLR inputs.
The SR-AX107 makes your recording work much easier. Level meter allows you to verify the proper input levels in real time, the output signal can be adjusted by the level controls for optimum recording.
The phone jack lets you monitor the audio from the adapter during recording, or from camera during playback. The AGC disable feature reduces noise during quiet moments of recording.
specifications
manufacturer
Saramonic
Country of origin
China
Features
Key Features
- Two balanced XLR inputs One monitor input jack
- One stereo 1/8″ (3.5 mm) mini-jack output
- Left and Right control knobs allows you to adjust the signal of each channel to the optimum recording levels
- M/S Switch select mono or stereo output mode
- LINE / MIC/ PH Switches
- PH 12V/OFF/48V Switch
- Level Meter indicates the sound level in dB for each channel
- The LED signal indicators flash red for overload
- Gain switch selects LOW for unity gain or HIGH for +20dB boost in sound level
- Headphone jack to monitor the audio from microphones or camera
- AGC ON/OFF Switch —Auto Gain Control will increase the gain to maximum level, the AGC Disable function reduces the hiss when the camera is recording during quiet moments
- GND1/GND2 Dual-mode grounding switch
- Dual Headphone Jacks allow you to monitor the audio from the adapter at the input and output points
