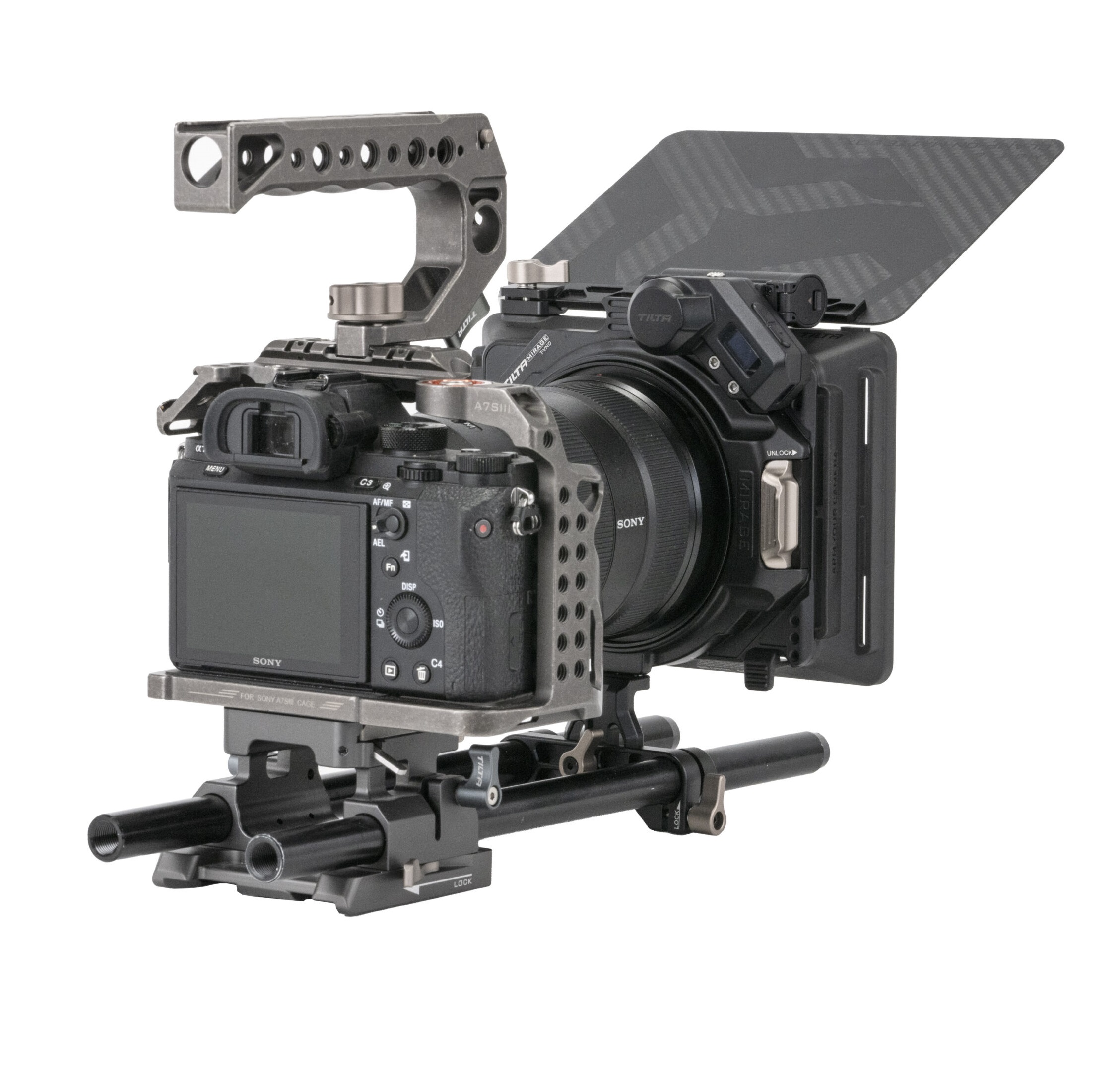

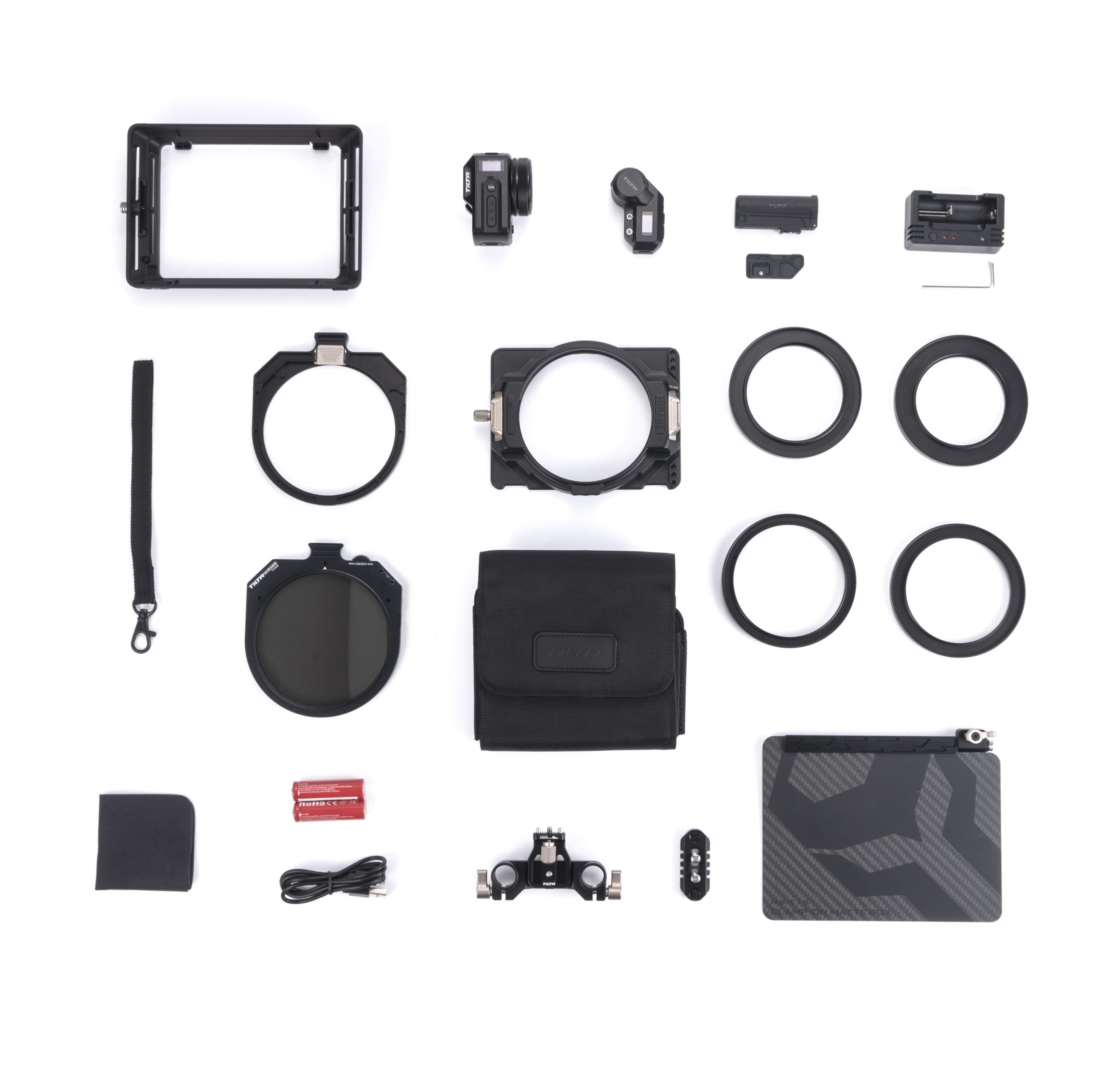

Tilta Mirage Motorized VND Kit is a modular component system combining a matte box that clips onto 95mm OD and a variable ND system with a motor and wireless controller that allows you to precisely adjust the ND effect from 0.3 to 2.7 stops when needed. The matte box weighs about the same as a standard 4 x 5.65" glass filter, and it accepts Tilta's 95mm round filters with the included filter adapter. The modular design means you can configure the matte box to match your needs on a shot-by-shot basis.

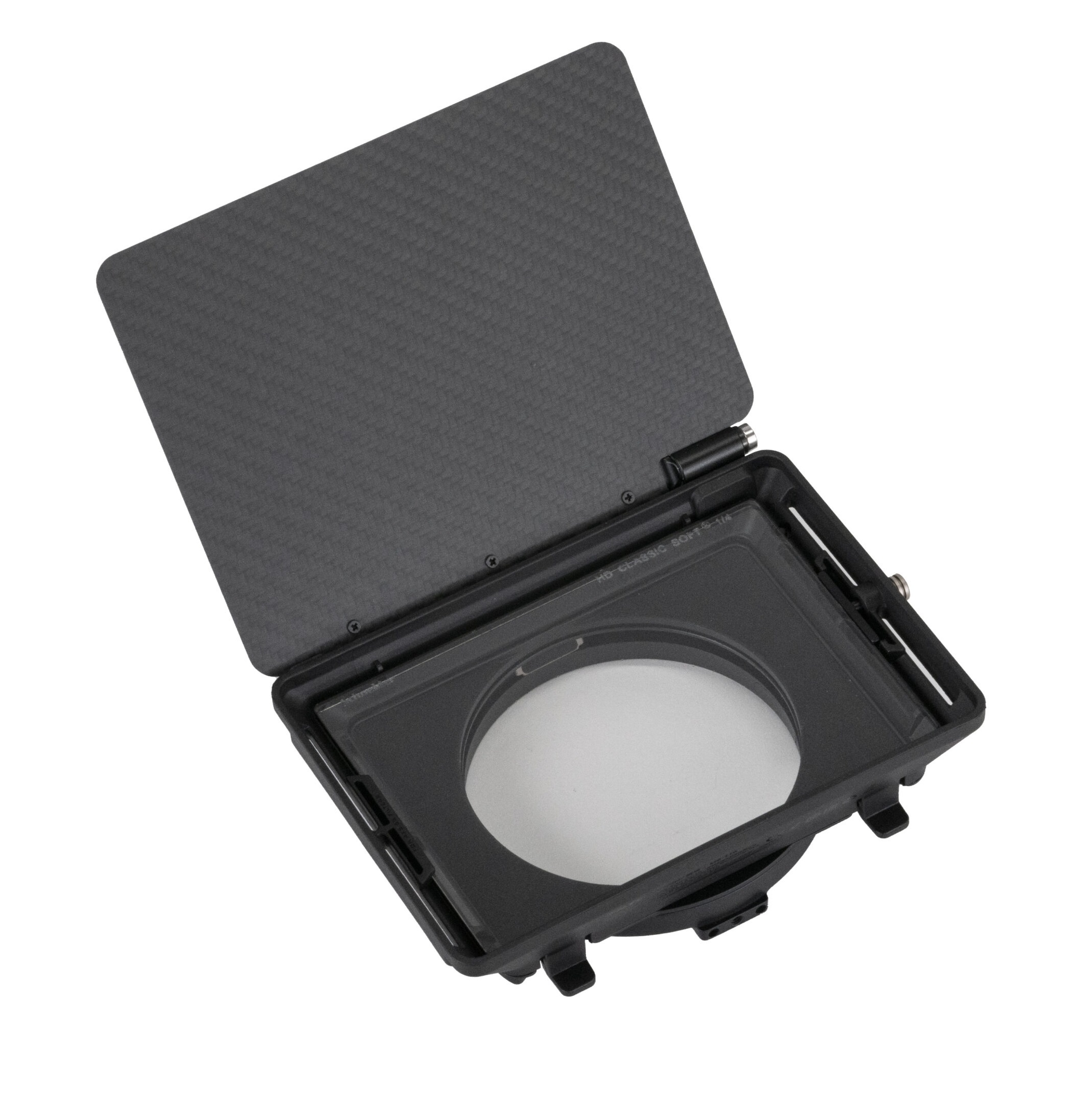

The included rigid hood and removable top flag aid in cutting glare and protecting your image from overhead flares. Four included lens adapters enable mounting the Mirage Matte Box on lenses with 67, 72, 77, or 82mm threaded fronts. The included 15mm LWS rod clamp can be attached, allowing you to mount the Mirage on rods to take the weight off your lens or use lenses with rotating fronts. An optional 4 x 5.65" stackable filter holder lets you mount 4 x 5.65" filters on the matte box. Other modular components, such as a top flag, dual circular filter tray, filter protector, and rubber hood for shooting up against windows, are available separately.

Variable ND System

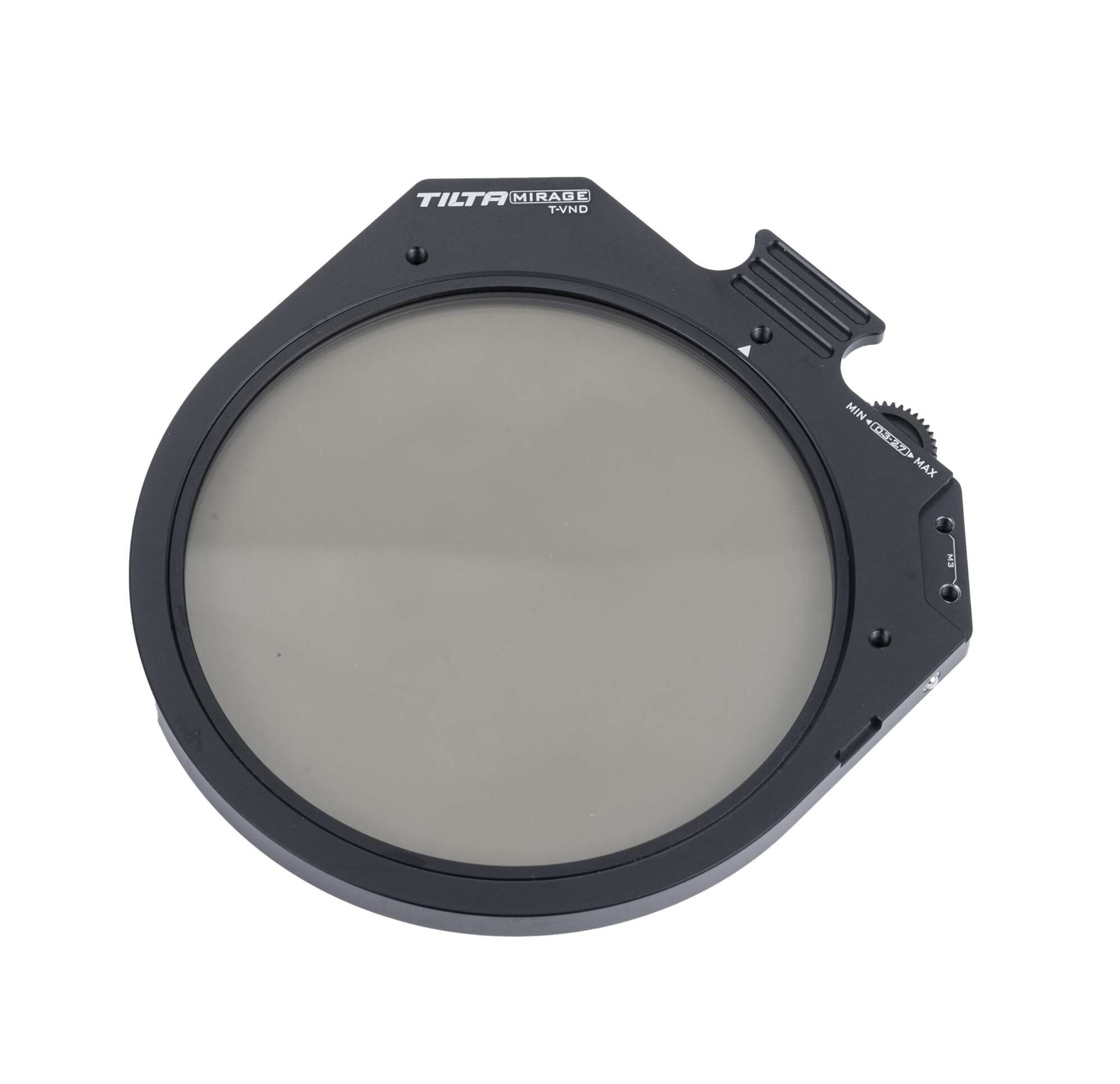

The included VND module enables you to precisely adjust the ND effect from 0.3 to 2.7 stops. The module has built-in hard stops between ND 0.3 to 2.7 to reduce the chance that the dreaded X-pattern shadow appears. The variable ND has no color shift for natural colors, and it has a larger axis between the filter elements. Tilta recommends that to prevent vignetting, use ND 0.3 to 2.1 for wide lenses and use ND 2.1 to 2.7 for focal lengths beyond 35mm.

Wireless Motor System

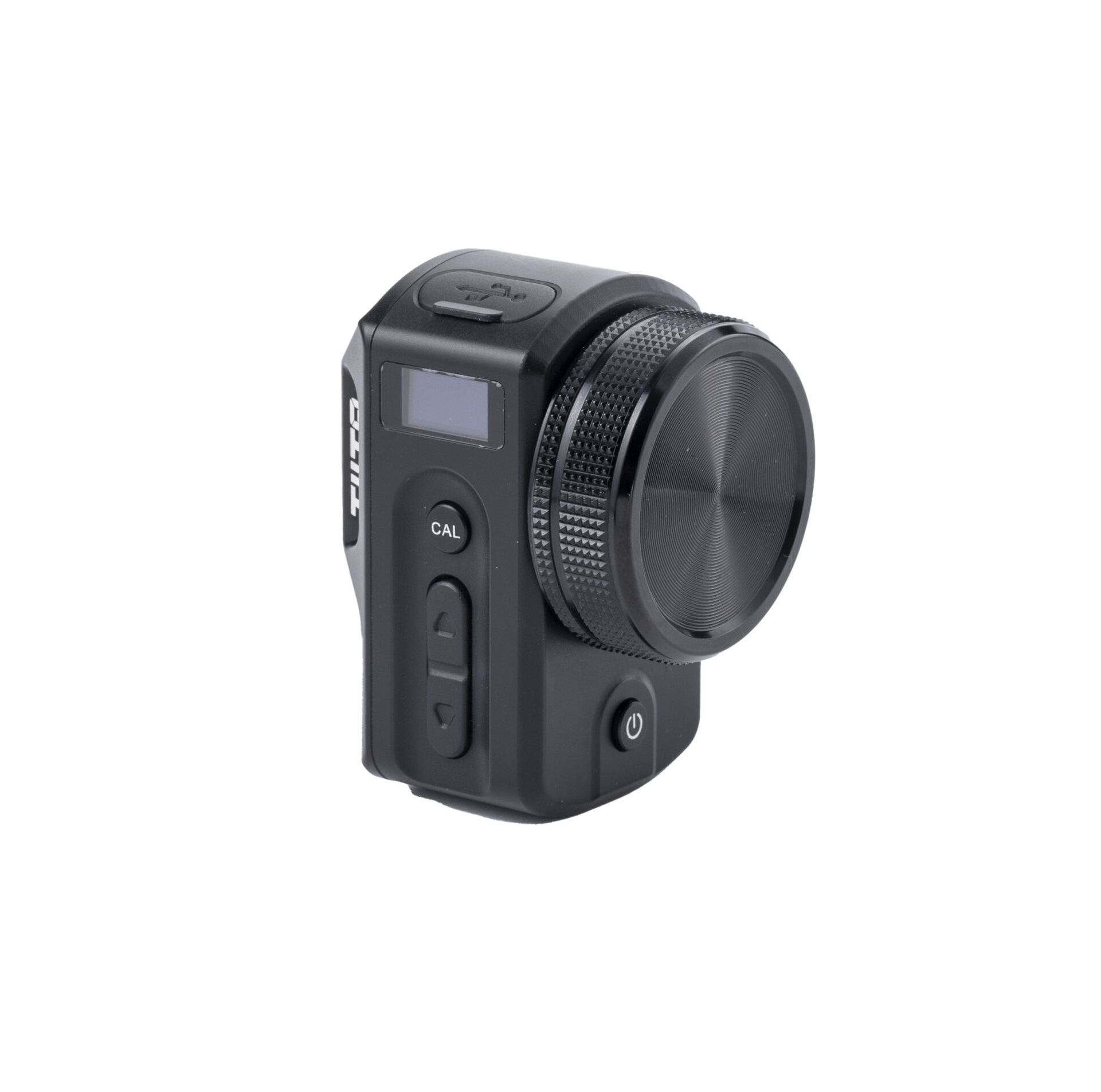

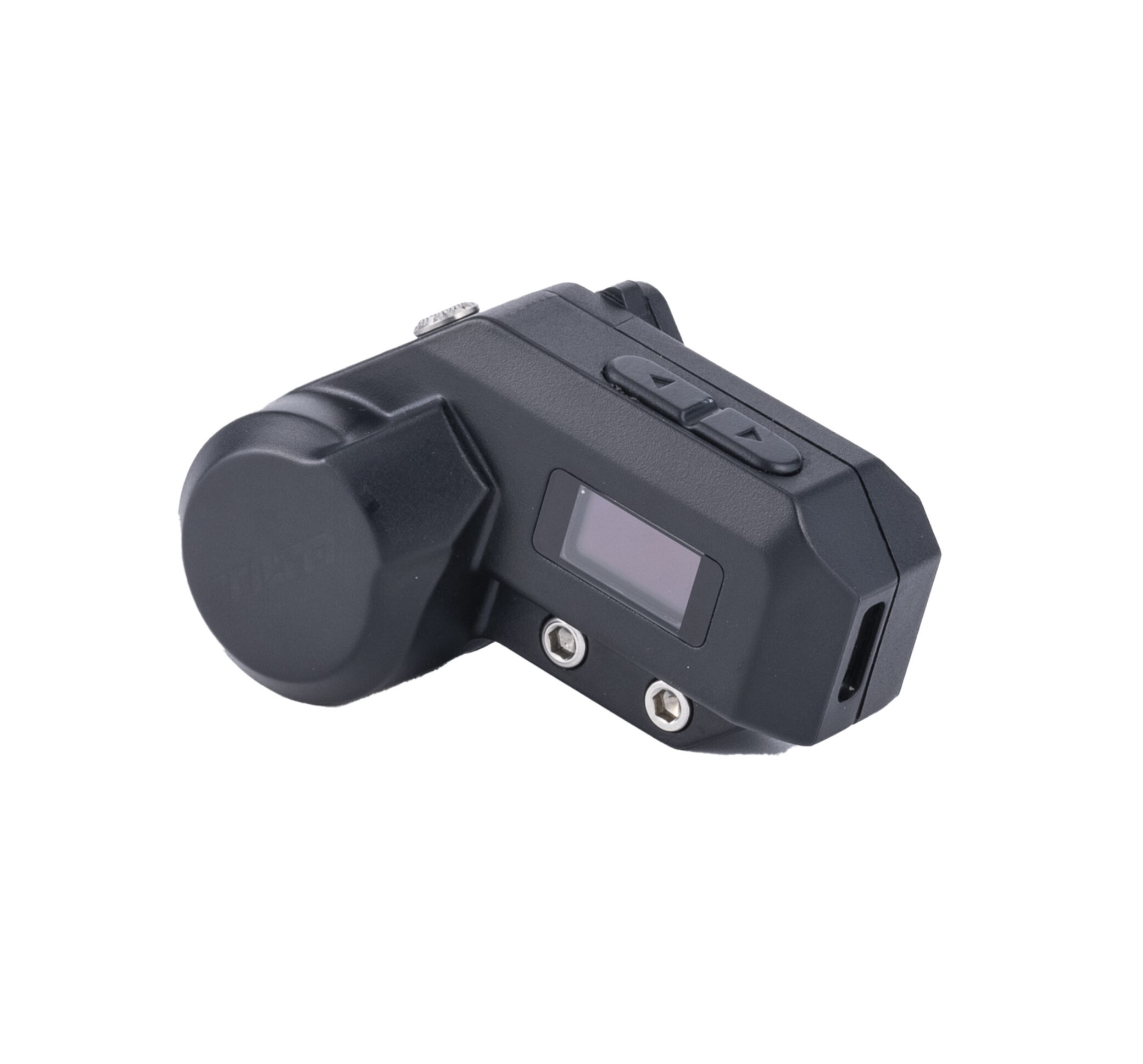

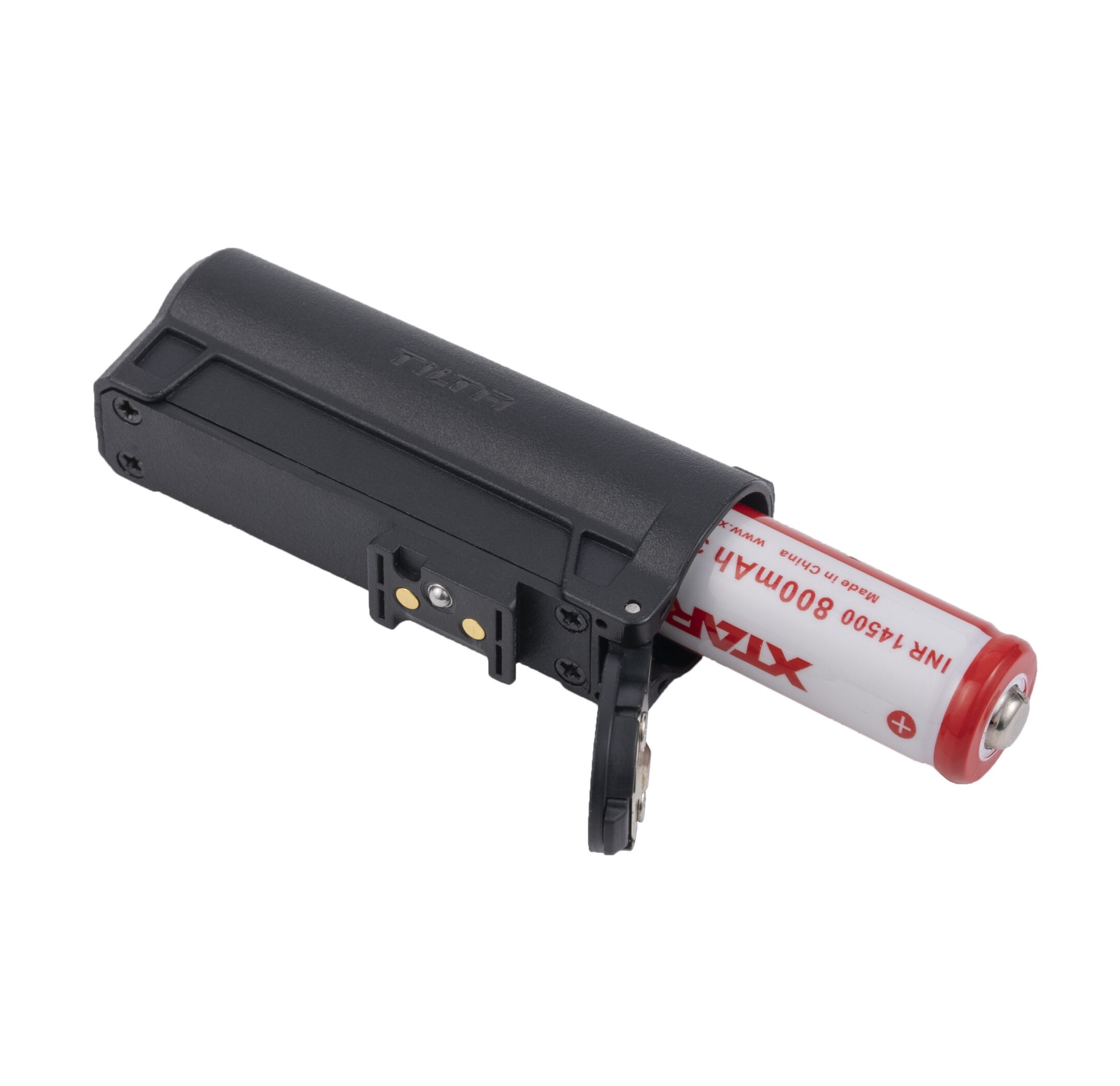

The wireless micro-motor can wirelessly adjust the VND unit remotely, allowing you to adjust the amount of ND when your camera is mounted on a stabilizer or gimbal, or when you need smooth adjustment without disturbing the camera during a take. The standard wireless range is about 328', and it can extend to over a mile by using an optional wireless signal amplifier, which is great for aerial photography. The VND's motor can be controlled with the new included wireless controller or Tilta's Nucleus Series Wireless Follow Focus Systems. The Wireless Controller mounts via NATO rail and can control the Nucleus M and Nano motor, as well as the Wireless Motor for the Tilta Mirage. Use the included Nucleus Nano Motor Mounting Bracket to secure the Nucleus Nano motor directly to the VND module.

Designed for the Wind

The matte box body has been designed to aid the airflow with integrated vents that can reduce wind resistance and improve stability when shooting subjects at high speeds, such as in a car or on a drone.

Modular Design

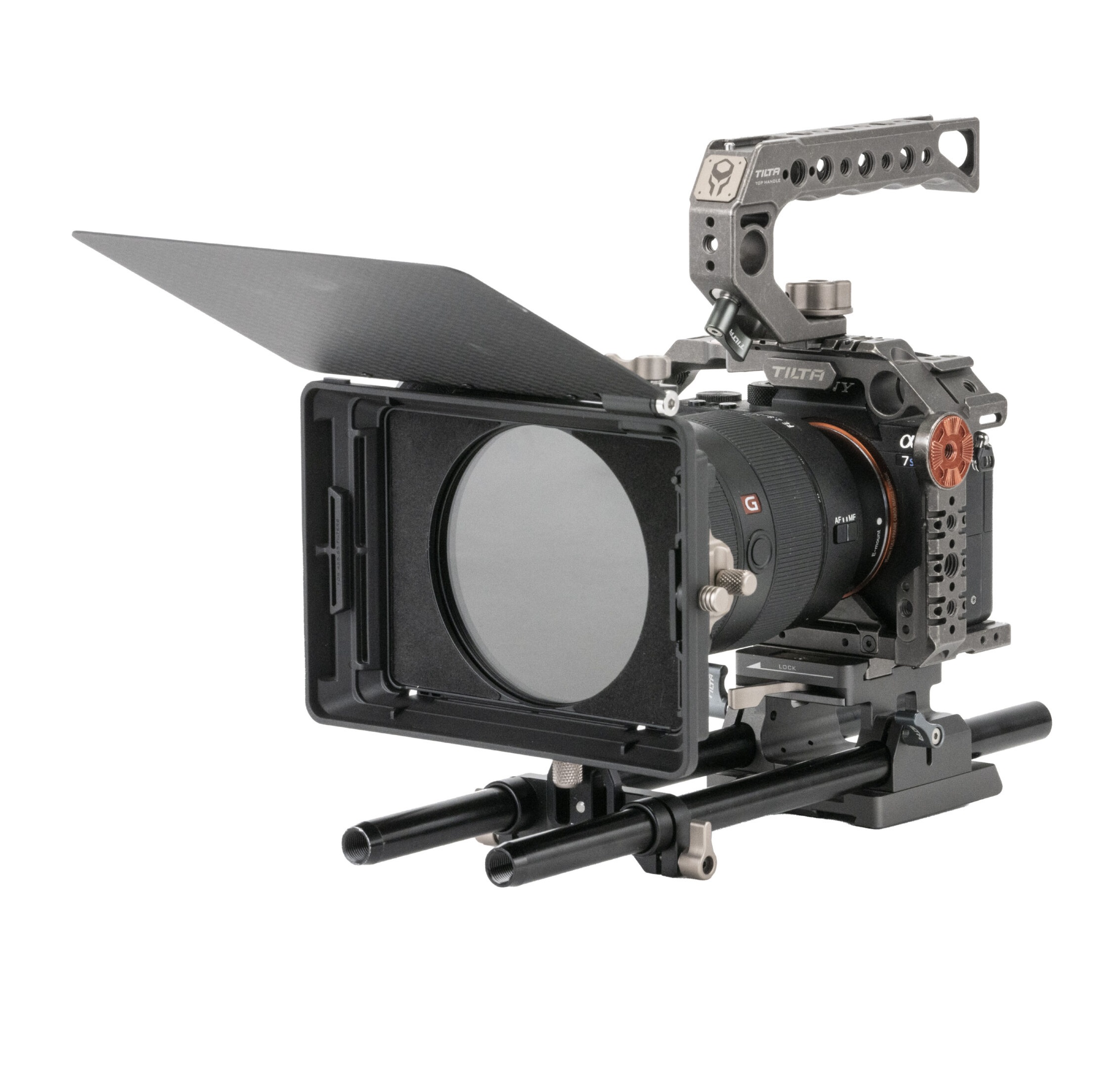

The modular design allows you to configure your matte box in a variety of ways: from completely stripped down using only the 95mm filter holder with the lens clamp to adding a 4 x 5.65" stackable tray, the included lens hood, the included top flag, or swapping the hood for an optional rubber hood. Additionally, you can add the optional 15mm LWS rod support, so you can mount the matte box to rods for handling heavier filter loads, such as the optional VND (variable neutral density) system.

95mm Circular Filter System

Tilta's 95mm circular (round) filter system proves coverage for lenses with up to a 95mm outer lens barrel diameter, and it provides significant weight savings over traditional filters, as the circular filters weigh about 1/4 the weight of traditional 4 x 5.65" glass filters.

Filters

An optional 4 x 5.65" stackable filter tray can be added between the filter clamp and matte box hood, allowing you to easily add one or two 4 x 5.65" filters to the matte box.

manufacturer	Tilta
Country of origin	China
